Gorbel Free Standing Articulated Jib Crane

The Free Standing Articulating Jib Crane is perfect for applications that demand the use of an articulating jib, but there are no walls or columns to mount the crane. This crane offers effortless rotation and a consistent responsiveness when positioning loads in a work cell, through open doorways, or into machines.

Product

This field is for validation purposes and should be left unchanged.

Sales

or

Share

Description

The Free Standing Articulating Jib Crane is perfect for applications that demand the use of an articulating jib, but there are no walls or columns to mount the crane. This crane offers effortless rotation and a consistent responsiveness when positioning loads in a work cell, through open doorways, or into machines.

  • Capacity up to 2000 lbs.
  • Coverage: circular, Standard spans to 16′
  • 360 degree rotation at each pivot point
  • Can be used with hook mounted lifting devices (electric, air, or vacuum)
  • Foundationless options available – Download our Foundationless Jib Cranes Flyer
  • Foundationless vs. Free Standing – Download our Infographic

Features:

  • Installation: floor mounted, easy to install
  • Effortless rotation
  • Special foundations may be required -contact factory for assistance

Options:

  • Electric lifting devices
  • Air lifting devices
  • Vacuum lifting devices

Applications:

  • Circular coverage area
  • Moving loads around corners or through doorways
  • Reaching loads into machines
  • Swinging loads under obstructions
What are the benefits of Foundationless Jib Cranes?

What are the benefits of Foundationless Jib Cranes?

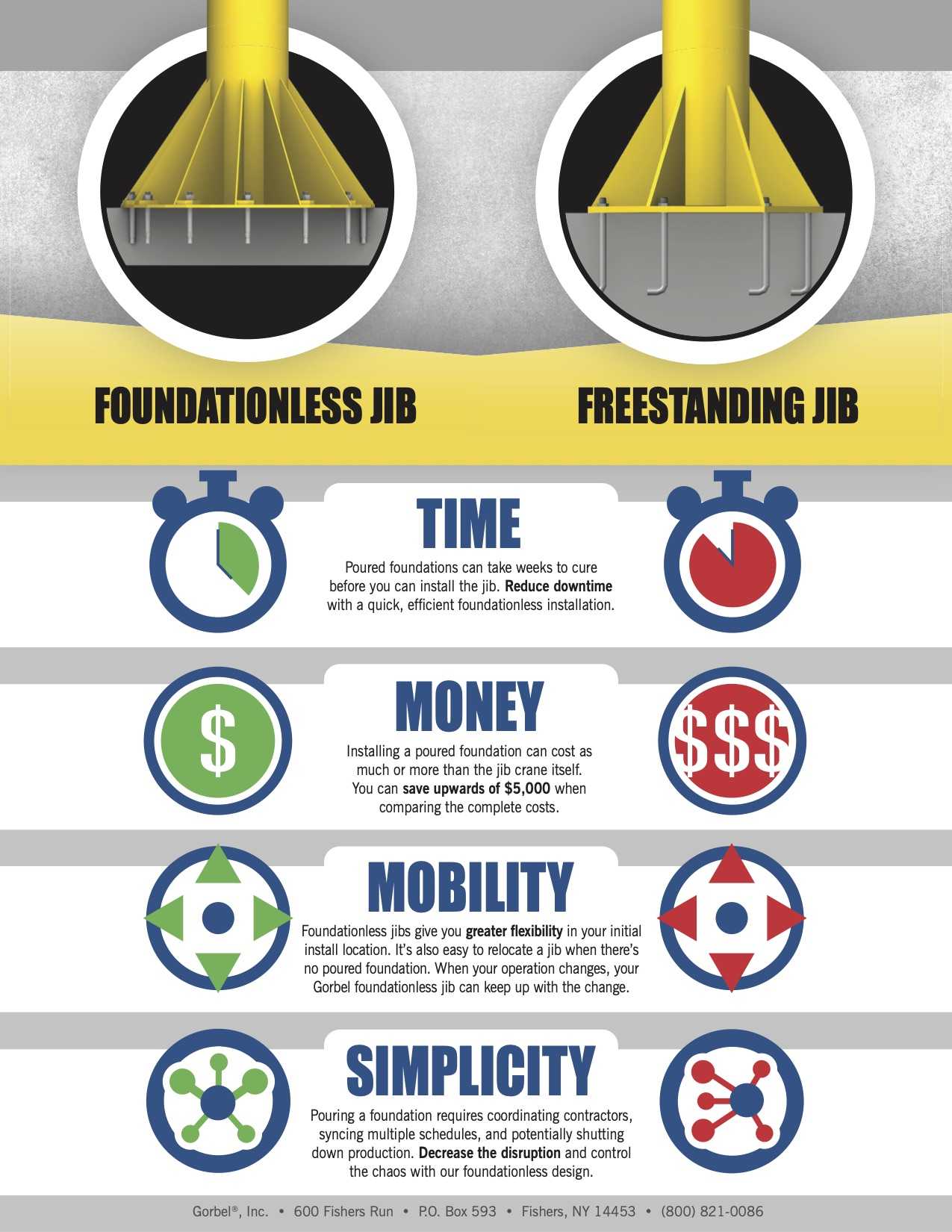

jibinfographic foundationless

Which Gorbel Jib Cranes are Compatible with Foundationless?

Which Gorbel Jib Cranes are Compatible with Foundationless?

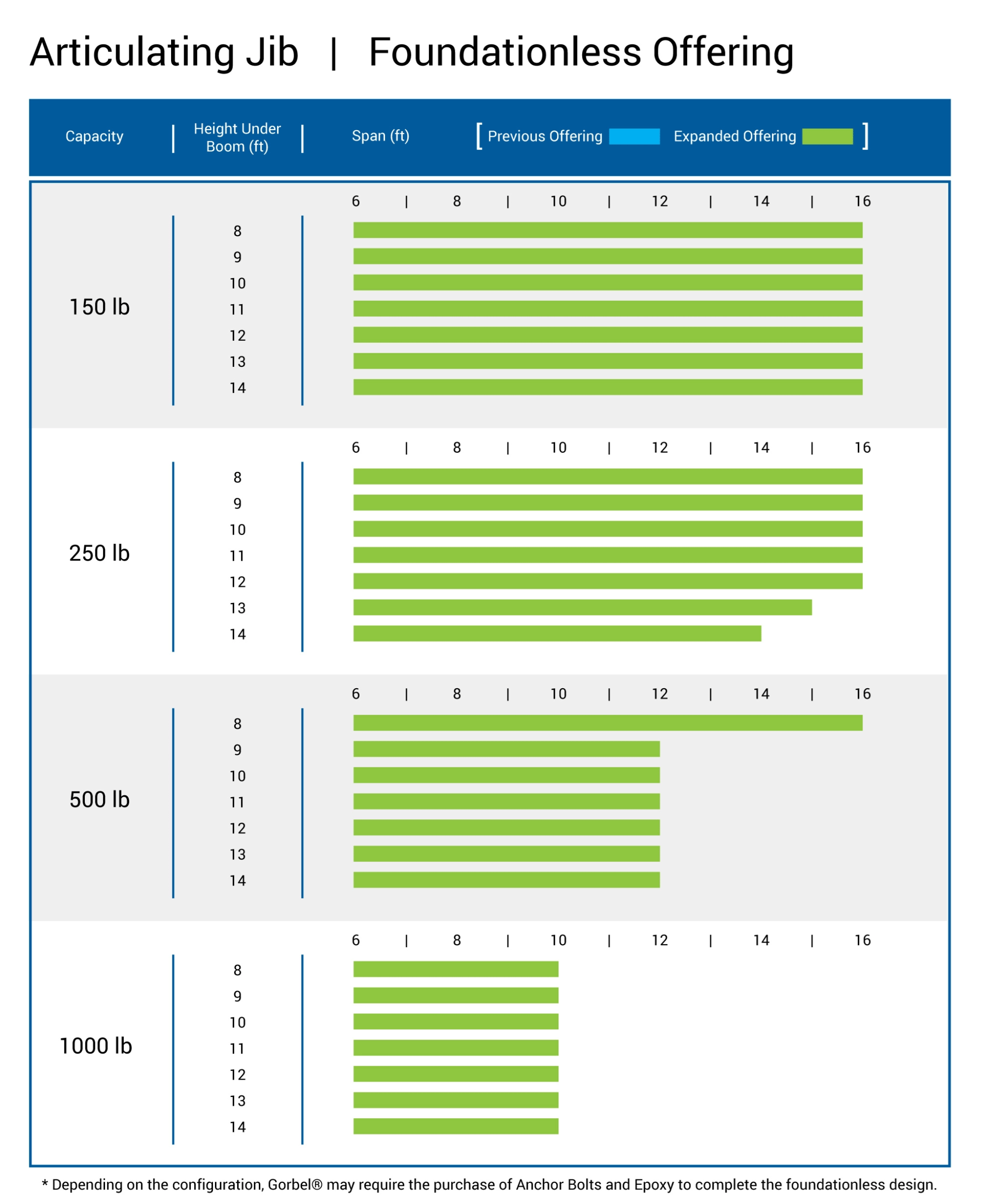

Gorbel articulating Jib Cranes Compatible with Foundationless

Installation Requirements

Installation Requirements

■ 6” Engineered slab greater than or equal to 3000 psi concrete containing Grade 60 wire 12×12-W31/W31

■ Mounted with chemical anchor bolts and mechanical grout

■ See installation manual for exact installation requirements, subject to change without notices

■ Gorbel recommends consulting a qualified engineer prior to mounting any crane system
